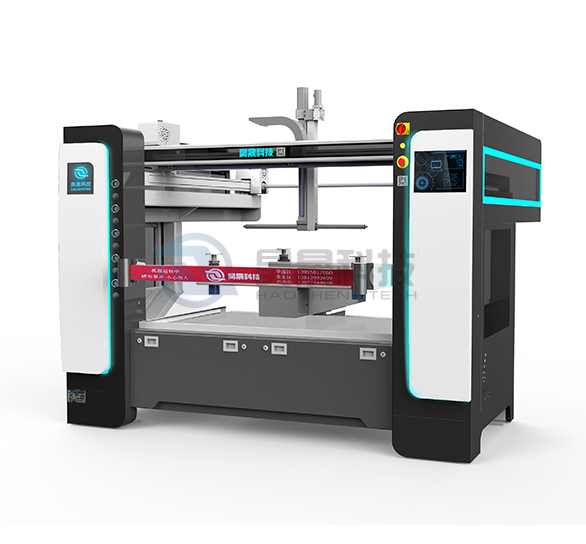

The automatic planning and optimization of tool paths for five axis reciprocating machines in surface machining is crucial for ensuring machining accuracy, improving machining efficiency, and extending tool life. This is mainly achieved through the following methods.

From the perspective of surface model processing, the first step is to accurately model the machined surface, import the CAD model into the control system of the five axis reciprocating machine, and use specific algorithms to discretize the model, decomposing the complex surface into a series of small line segments or surface patches, providing a foundation for subsequent tool path planning.

In tool path planning algorithms, commonly used methods include equal parameter line method and equal residual height method. The equal parameter line method generates tool paths along the parameter line direction of the surface, which has the advantages of simple calculation, fast path generation speed, and is suitable for surfaces with relatively regular shapes. The residual height method automatically calculates the cutting trajectory of the tool on the surface based on the set residual height, ensuring that the residual height on the surface after machining is uniform and consistent, which can effectively improve the surface quality of machining, especially suitable for complex surface machining with high requirements for surface roughness.

In addition, intelligent technology will be combined to optimize tool paths. Using artificial intelligence and machine learning algorithms, analyze a large amount of machining data, including machining effects under different surface shapes, machining materials, tool parameters, etc., in order to establish a tool path optimization model. When faced with new machining tasks, the system can quickly generate better tool paths based on existing models, reduce the number of trial cuts, and improve machining efficiency.

At the same time, considering the motion characteristics of the five axis reciprocating machine, in the process of tool path planning, it is necessary to fully consider the motion range, speed limitations, and possible interference of each axis. Through collision detection algorithms, there is a real-time check for interference risks between the tool, workpiece, and fixture. Once interference is detected, the tool path should be adjusted immediately to ensure the safety and reliability of the machining process.

Through the collaborative cooperation of surface model processing, tool path planning algorithms, intelligent technology applications, and interference detection, the five axis reciprocating machine can achieve efficient automatic planning and optimization of tool paths during surface machining, meeting the modern manufacturing industry's demand for high-precision and high-efficiency surface machining.
